Imagine etching shimmering, almost-holographic images onto everyday metal using nothing but a laser – it's like blurring the line between science fiction and your garage workshop! This cutting-edge technique is opening up thrilling possibilities for makers and inventors, and we're about to dive deep into how it's happening. But here's where it gets exciting: what if I told you this involves turning stainless steel into a canvas for light-bending art? Stick around, because the details will blow your mind.
The world of lasers for hobbyists and hackers has evolved dramatically over the years. We started with simple gas lasers, then moved to powerful CO2 tube lasers, efficient diode lasers, and now the versatile fiber lasers. One of the latest innovations shaking things up is the MOPA laser, a clever hybrid that pairs a laser diode with a fiber-based amplifier. The beauty of this setup is in its control – you can easily tweak the pulse length and repetition rate of the diode, while the fiber amplifier boosts the power to levels perfect for creative, high-energy tasks. And yes, that includes etching patterns that mimic holograms onto stainless steel, as brilliantly demonstrated by maker [Ben Krasnow] in his video (https://www.youtube.com/watch?v=RsGHr7dXLuI).
To understand why stainless steel is the star here, let's break it down simply. When heated by a laser, stainless steel develops a thin oxide layer on its surface. The thickness of this layer depends directly on the temperature reached – hotter spots create thicker oxides. This is where thin-film interference comes into play, a phenomenon you might recognize from the rainbow hues on soap bubbles or oil slicks. Essentially, light waves bounce off the top and bottom of the oxide layer, interfering with each other to produce vibrant colors. By adjusting the laser's intensity, you can "mark" different parts of a steel sheet with these colors, creating eye-catching images. For beginners, think of it like painting with heat instead of paint – the laser acts as a precision brush, revealing colors through physics rather than pigments.
[Ben] took this further by creating a script (https://github.com/benkrasnow/MOPALaserStainless_Colors) to etch full-color images onto steel. During one of his experiments, he stumbled upon something even more intriguing: an area that showed diffraction patterns, those mesmerizing effects where light bends and splits, creating rainbows or starbursts. Digging deeper, he discovered the laser could reliably produce diffraction gratings from parallel lines of oxide. But here's the part most people miss – and it might just challenge what you think about material science: the oxide layer grows predominantly downward into the metal, rather than building up on the surface. This unexpected behavior could have big implications for how we think about laser marking.

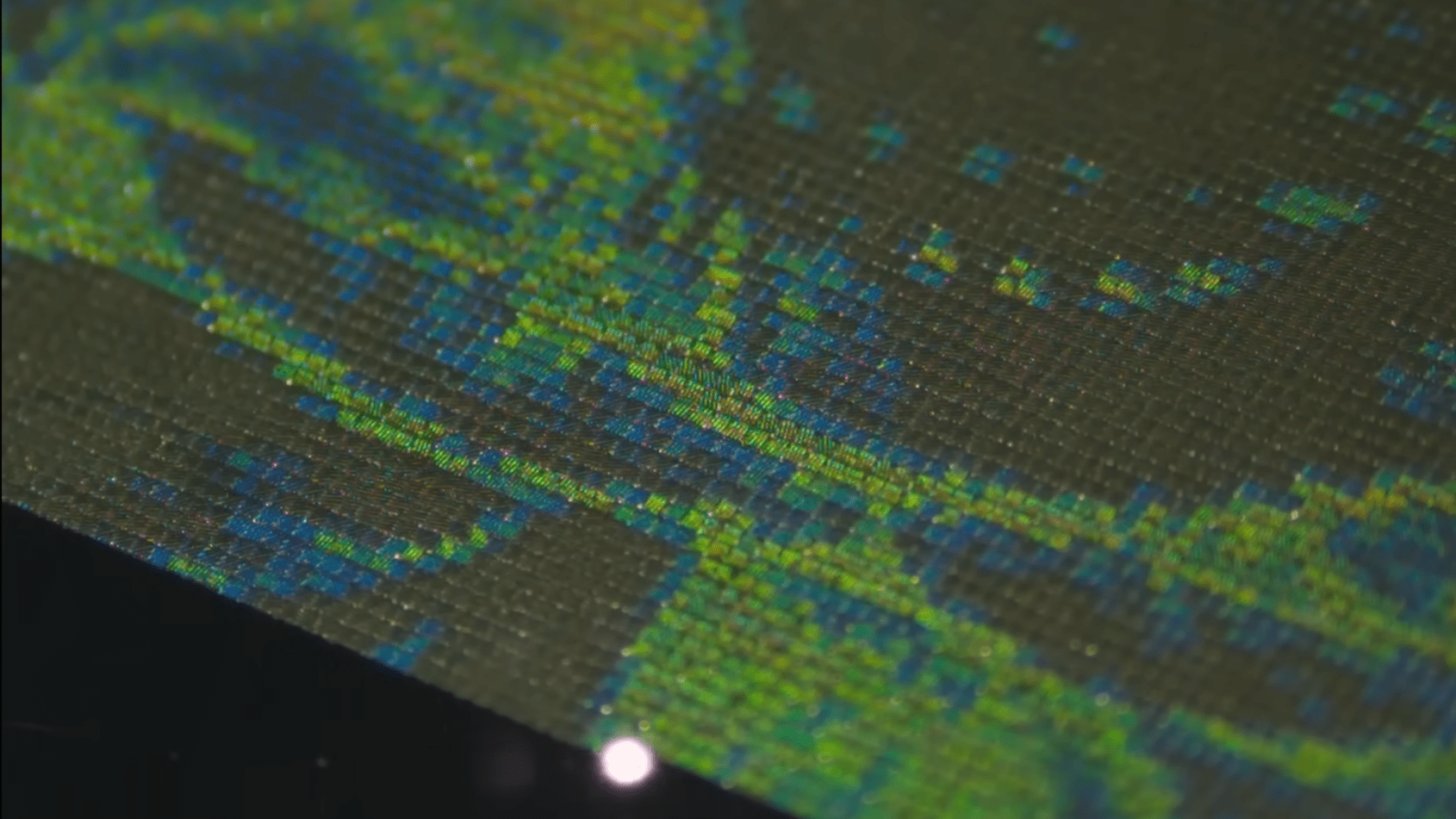

Diffraction gratings are like tiny rulers for light; they consist of closely spaced lines or grooves that diffract (or bend) light waves at different angles, splitting white light into a spectrum. In this case, the pitch – the spacing between lines – is perpendicular to the etched lines' direction. By changing the line spacing, you alter the diffraction angle, giving you precise control over how light interacts with the surface. In theory, this level of control should allow for printing true holograms with a laser. [Ben]'s initial foray into this realm involved a script (https://github.com/benkrasnow/MOPALaserDiffraction_Gratings) that transformed black-and-white photos into dazzling matrices of diffraction-grating pixels. Each pixel's grating orientation was tied to the photo's brightness, making darker areas shimmer with specific light patterns.
To amp up the wow factor, [Ben] added a parallax depth effect – that's the illusion of depth where things look different from various viewing angles, like in 3D movies. He achieved this by spreading images into a gradient across the diffraction grating, so the etched surface displays varying images depending on your viewpoint. While the images are limited by the minimum size needed for each grating pixel (too small, and the effect gets blurry), the overall result is strikingly noticeable. Imagine holding a piece of metal that shifts and sparkles like a hologram from a sci-fi blockbuster – it's not full holography yet, but it's tantalizingly close.
And this is where it gets controversial: since the oxide layers grow inward into the metal, [Ben] questions whether this laser technique could be used to create molds for diffraction-grating chocolate (https://hackaday.com/2018/04/16/delicious-optics-a-chocolate-diffraction-grating/). For those unfamiliar, that's a fun reference to edible optics where chocolate is molded into grating patterns for light-bending treats. But is this limitation a deal-breaker, or just a quirky hurdle? Some might argue it's a missed opportunity for culinary innovation, while others see it as a chance to explore new materials that behave differently. What do you think – should we push boundaries to make chocolate holograms, or is metal the true frontier? Share your opinions in the comments!
If diffraction optics have captured your curiosity, there's more to explore. Dive into custom diffraction lenses for lasers (https://hackaday.com/2024/08/23/creating-customized-diffraction-lenses-for-lasers/) or learn about how traditional holograms work by recording wavefronts (https://hackaday.com/2024/12/03/holograms-the-art-of-recording-wavefronts/). These resources can help beginners visualize concepts like wavefronts – picture light as waves rippling through water, and holograms capture those ripples to recreate 3D images.
In wrapping up, this laser-based method for near-holographic gratings on stainless steel is a game-changer for makers, blending precision engineering with artistic flair. But is it truly "almost" holograms, or a revolutionary new category? And could it inspire everyday applications, from custom jewelry to industrial labeling? We'd love to hear your take – does this excite you, or do you see potential pitfalls? Drop your thoughts below and let's discuss!
